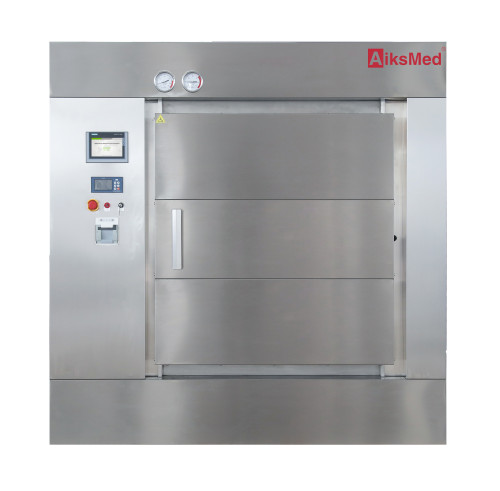

AMPOULE/VIAL STEAM AUTOCLAVE AZD MODEL

  AZD Model Ampoule Steam Autoclave are used for liquid injections sterilization in pharmaceutical production.



Application
 custom autoclave sterilization for ampoule, liquid injectioans, eye drops, oral liquids, and etc.




AKS-ASMD Series

Model

Chamber Size

Chamber Vol(L)

AZD-0.6

610*910*1200

600

AZD-0.8

610*910*1500

800

AZD-1.0

610*910*1800

1000

AZD-1.2

680*1180*1500

1200

AZD-1.5

680*1180*1900

1500

AZD-2.0

1000*1200*1700

2000

AZD-2.5

1000*1200*2100
2500
AZD-3.0
1000*1200*2500
3000
AZD-4.0
1000*1200*3340
4000
AZD-5.0
1000*1200*4200
5000
AZD-6.0
1000*1200*5000
6000
★★★Features:


superheated water cascade autoclave sterilization chamber
✔  Main components of the sterilizer: sterilization chamber, sealing door, pipeline system, control system, loading&transfer system;

✔ Housing, support frame, chamber made of corrosion-resistant stainless steel material

✔ Autoclave vessel is made of AISI316L

✔Design pressure up to 0.3MPa/3bar

✔Safety valves for chamber, with over-pressure protection

✔ Door interlock security system

✔ Door lock with durable, heat and pressure-resistant seal/gasket

✔   Touch screen control

✔ Access code to prevent uncontrolled software changes

✔   Three-level authority management

✔ Up to 100 sterilization cycles

✔ Portable PT-100 temperature sensor (class A)

✔ Display of sterilization temperature, time, F0 value in real time

✔ Validation port to test thermal distribution

✔ Network and USB ports for data transfer

✔ Equipped with cycles

✔ Emergency stop button to stop autoclave cycles

✔ Alarm information in form of code and full message
