Mold Incubator
Mold Incubator
Mold Incubator
Model
MD-S120/200/300

Item specifics

Brand
AiksMed
Mode
Air Jacketed
Volume
120L, 200L, 300L
Control
temperature, Humidty

Review

Description

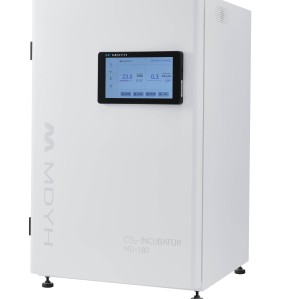

Laboratory Biochemical Incubator
Mold Incubator for Cell Culture
Well-designed biochemical incubator with 120/200/300/400L capacity, providing a suitable, and stable environment for cell/tissue culture. 10-Inch touch screen for more intuitive operation.
Unique Features
* PID control;
* Built-in HEPA;
* Temperature Uniformity: ≤0.5℃;
* Temperature diviation alarm.
* UV lamp disinfection and lighting.
Advantages
Data Management:
Real-time view of parameter curves: temperature, Humidity;
Data logging and download function.

Touch Screen: 10-Inch color touch screen, clear and Intuitive display, USB interface for Data output.

Temperature Control:
* High-precision temperature sensor to ensure accurate control of interior temperature;
* 6 sided heating prevents condensate generating, it avoids breeding bacteria and causing pollution to cultivation environment.

Contamination Control:
* Air inlet equipped with HEPA to effectively filter bacteria and dust particles ≥0.3μm in CO2.
* Built-in HEPA can quickly maintain the air cleanliness to ISO5 level after operation.
* 140℃ dry heat sterilization to provide safe experimental environment.
* With heating function, inner glass can prevent condensate, avoids the risk of microbial contamination, meanwhile it is convenient for observing experimental process.

Humanized Design:
* Detachable, anti-dumping, integrated shelf can be disassembled without tools.
* HEPA is easy to disassemble and install without tools.
* Visual glass door for easy experimental observation.

Integrated Interior:
* 304 stainless steel, corrosion-resistant, 100% arc design, no dead corners, easy to clean, effectively prevent contamination of microorganisms.

Test Hole:
* Connected to external temperature, humidity sensors, and etc.;
* Cable or control line can be introduced through it, when auxiliary equipment needed, without leading the wire from door, to ensure the sealing of interior.

Sampling Hole:
* Interior parameters such as temperature and gas content can be measured through it.
Safety System:
* High temperature, low temperature and over-heat alarm
* Cooling fan automatic start and stop
* Sterilize palm rejection
* HEPA replace alert
Specifications
Biochemical Incubator
Model
MD-120M
  MD-200M
 MD-300M
External Size(W*D*H)
  660x670x1030mm
   700x755x1160mm
740x817x1310mm
Internal Size(W*D*H)
  520x440x530mm
 600x510x660mm
 640x580x810mm
Heating Mode
Air jacketed
Temperature
Control range
5~60℃
 Control accuracy
0.1℃
Thermal uniformity
±0.5℃
Alarm setup
Upper limit: 0~5℃
Ambient temperature
0~33℃
Controller
PID
Sterilization Method
140℃ dry heat sterilization
Humidity
Range
up to 95%
Method
Natural
