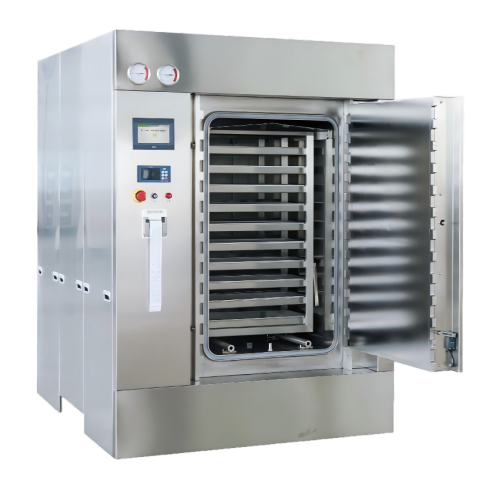

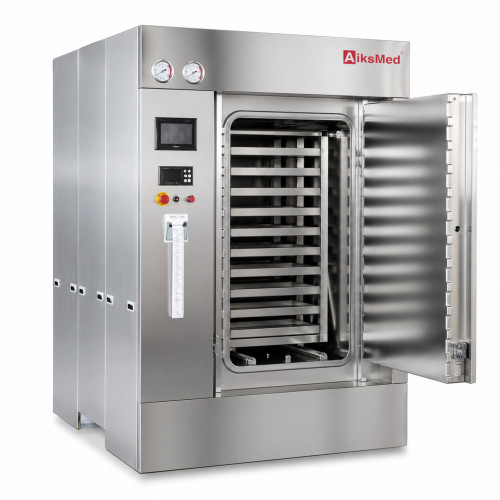

Traditional Chinese Medicine Sterilizer Steam Autoclave for Herbal powder and material
Traditional Chinese Medicine Sterilizer Steam Autoclave for Herbal powder and material
Traditional Chinese Medicine Sterilizer Steam Autoclave for Herbal powder and material
Traditional Chinese Medicine Sterilizer Steam Autoclave for Herbal powder and material
Traditional Chinese Medicine Sterilizer Steam Autoclave for Herbal powder and material
Traditional Chinese Medicine Sterilizer Steam Autoclave for Herbal powder and material

Traditional Chinese Medicine Sterilizer Steam Autoclave for Herbal powder and material

Model
MYD-0.2,MYD-0.25, MYD-0.28, MYD-0.36, MYD-0.4, MYD-0.5, MYD-0.6, MYD-0.8, MYD-1.0A, MYD-1.0B, MYD-1.2, MYD-1.5, MYD-2.0A, MYD-2.0B, MYD-2.5, MYD-3.0, MYD-4.0, MYD-5.0

Item specifics

Loading Capacity
200L/250L/280L/360L/430L/540L/650L/820L...5000L
Customized
Available
Application
Herbal materials and powder
Door
Pass-through Double Hinged Doors/Sliding Doors

Review

Description

Technical Specifications
Key Configurations
Applications
Product Introduction

Herbal Medicine Steam Sterilizer


Conventional disinfection treatment on herbal medicines are cobalt 60, ethylene oxide, alcohol, microwave, ozone and etc. However, it is difficult to ensure drug properties due to chemical residues, or the cost is expensive.


Product Detailed Parameters
Machine Model

Model
Volume
(L)
Chamber Size
(L×W×Hmm)
Overall Size
(L×W×Hmm)
Power
(KW)
N/W
(KG)
MYD-0.2
200
780×500×500
1020×1200×1740
1.2
700
MYD-0.25
250
1000×500×500
1240×1200×1740
1.2
750
MYD-0.28
280
780×600×600
1040×1270×1740
1.6
780
MYD-0.36
360
1000×600×600
1260×1270×1740
1.6
880
MYD-0.4
400
1200×600×600
1460×1270×1740
1.6
950
MYD-0.5
500
1500×600×600
1760×1270×1740
1.6
1000
MYD-0.6
600
1180×610×910
1440×1280×1940
2.4
1200
MYD-0.8
800
1480×610×910
1740×1280×1940
2.4
1400
MYD-1.0A
1000
1800×610×910
2060×1280×1940
2.4
1600
MYD-1.0B
1000
1250×680×1180
1580×1460×2040
2.4
1600
MYD-1.2
1200
1500×680×1180
1780×1460×2040
3.2
1700
MYD-1.5
1500
1900×680×1180
2180×1460×2040
4.2
1850
MYD-2.0A
2000
2600×680×1180
2900×1460×2040
4.2
2400
MYD-2.0B
2000
1700×1000×1200
2000×2000×2040
4.2
2400
MYD-2.5
2500
2100×1000×1200
2400×2000×2040
4.2
2700
MYD-3.0
3000
2520×1000×1200
2820×2000×2040
5.7
3200
MYD-4.0
4000
3340×1000×1200
3640×2000×2040
5.7
3700
MYD-5.0
5000
4200×1000×1200
4500×2000×2040
7.7
4200
Design pressure
-0.1/0.3Mpa
Working pressure
0.25Mpa
Design temperature
144℃
Working temperature
137℃
Max. vacuum
-0.096Mpa
Thermal uniform
≤±1℃
Steam pressure
0.3-0.5Mpa
Water pressure
0.15-0.35Mpa
Compressed air pressure
0.5-0.7Mpa
Changes in sterilized items
Yam slices

Turmeric powder

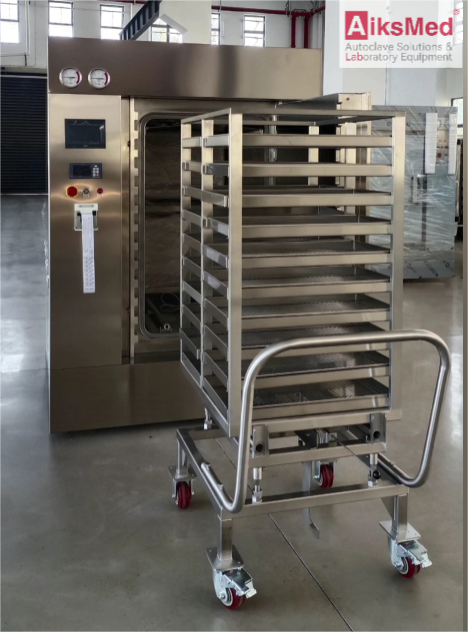

✔ Main components of the sterilizer: sterilization chamber, sealing door, pipeline system, control system, loading&transfer system;
✔ Housing, support frame, chamber made of corrosion-resistant stainless steel material
✔ Autoclave vessel is made of AISI304 / 316L
✔ Design pressure up to 0.3MPa/3bar
✔ Safety valves for chamber, with over-pressure protection
✔ Door interlock security system
✔ Door lock with durable, heat and pressure-resistant seal/gasket
✔ Touch screen control
✔ Access code to prevent uncontrolled software changes
✔ Three-level authority management
✔ Up to 100 sterilization cycles
✔Portable PT-100 temperature sensor (class A)
✔ Display of sterilization temperature, time, F0 value in real time
✔ Validation port to test thermal distribution
✔ Network and USB ports for data transfer
✔ Equipped with cycles
✔ Emergency stop button to stop autoclave cycles
✔ Alarm information in form of code and full message

Sterilizing and drying of herbal materials and powder type, such as Gastrodia elata, Panax notoginseng, Dendrobium, Ginseng, etc.  Spices, healthy foods, cereals, fish meal, dried wild vegetables, tea leaves, etc.
