Model
ASMD-0.6/0.8/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0

Item specifics

Loading Capacity
600, ...1200, ... 2500, 3000, 4000,5000,6000LITER
Customized
Available
Application
Liquid Injection, Glass/PP Ampoule, BFS Container
Door
Pass-through Double Doors
Control System
PLC+HMI/PC
Loading System
Ampoule Cassette, Loading Cart, Trolley
Lead Time
60~90 working days

Review

Description

Application
Features
Technology
Customer Options
Video

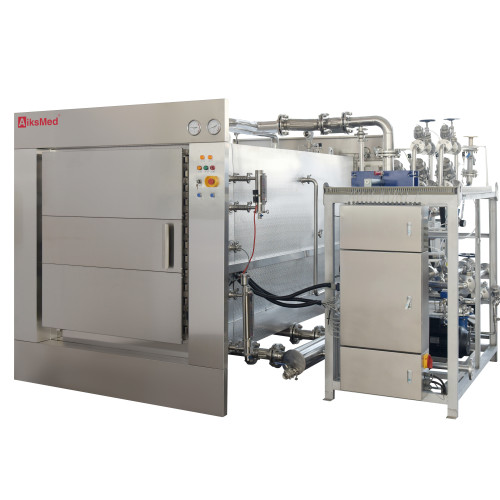

              SUPERHEATED WATER AUTOCLAVE

ASD Model

     ASD Model Superheated Water Autoclave is used for liquid injections sterilization in pharmaceutical production.

                AIKSMED provides wide range of dimensions for options, including 11 kinds of volumes from 600 liters to 6000 liters.

meanwhile combined with various features for strict requirements,

such as multiple sterilization process, easy maintenance, stable performance, and highly efficient process.

Additional accessories can be fitted to achieve higher level requests.

       eg. for biological safety laboratories, to separate sterile and non-sterile areas, and protect external environment,

            pass-through safety interlock,




Application
Sterilization of liquid injectioans, eye drops, oral liquids, and etc.
BFS container plastic ampoule autoclave sterilization AIKSMED

glass ampoule vial autoclave sterilization AIKSMED

oral liquid autoclave sterilization AIKSMED

BFS container plastic ampoule autoclave sterilization AIKSMED

AKS-ASMD Series

Model

Chamber Size

Chamber Volume

AKS-ASMD-0.6

610*910*1200

600L

AKS-ASMD-0.8

610*910*1500

800L

AKS-ASMD-1.0

610*910*1800

1000L

AKS-ASMD-1.2

680*1180*1500

1200L

AKS-ASMD-1.5

680*1180*1900

1500L

AKS-ASMD-2.0

1000*1200*1700

2000L

AKS-ASMD-2.5

1000*1200*2100
2500L
AKS-ASMD-3.0
1000*1200*2500
3000L
AKS-ASMD-4.0
1000*1200*3340
4000L
AKS-ASMD-5.0
1000*1200*4200
5000L
AKS-ASMD-6.0
1000*1200*5000
6000L


★★★Features:
Superheated Water Sterilizer Chamber
✔  Main components of the sterilizer: sterilization chamber, sealing door, pipeline system, control system, loading&transfer system;

✔ Housing, support frame, chamber made of corrosion-resistant stainless steel material

✔ Autoclave vessel is made of AISI304 / 316L

✔ Design pressure up to 0.3MPa/3bar

✔ Safety valves for chamber, with over-pressure protection

✔ Door interlock security system

✔ Door lock with durable, heat and pressure-resistant seal/gasket

✔ Touch screen control

✔ Access code to prevent uncontrolled software changes

✔ Three-level authority management

✔ Up to 100 sterilization cycles

✔Portable PT-100 temperature sensor (class A)

✔ Display of sterilization temperature, time, F0 value in real time

✔ Validation port to test thermal distribution

✔ Network and USB ports for data transfer

✔ Equipped with cycles

✔ Emergency stop button to stop autoclave cycles

✔ Alarm information in form of code and full message

Superheated Water Sterilizer Chamber
Design
■ Original design of water cascading board with multi-point water inlets and outlets to ensure uniform thermal distribution, easy for installation and replacement.
autoclave sterilization manufacturer piping AIKSMED
Circulated Water Return and Distributed System

■ With the water returning and distributing piping, it can realize smooth and large amount water flow, achieving faster heating-up and better thermal distributing.
autoclave sterilization manufacturer control cycle AIKSMED
Operation
■ 3-level management authority.
autoclave sterilization manufacturer drain AIKSMED
Duel Temperature Sensor Inside Chamber

■ Two duel-channel PT100 inside chamber, at front and rear door, it can simulate actual heating curve inside the ampoule during sterilization stage, it is more intuitive and easy to control the temperature distribution.
autoclave sterilization manufacturer insulation AIKSMED
Insulation
■ Aluminum silicate fiber, thickness of 60mm, it is non-toxic and harmless to humanbeings.
■ Embossed board covering the aluminum silicate fiber,
it has excellent insulation performance, reducing heat rediation to the greatest extent.
Options:
Superheated Water Cascade Sterilizer
Chamber Volume: 3000Liters
Loading: PE Plastic Ampoules
