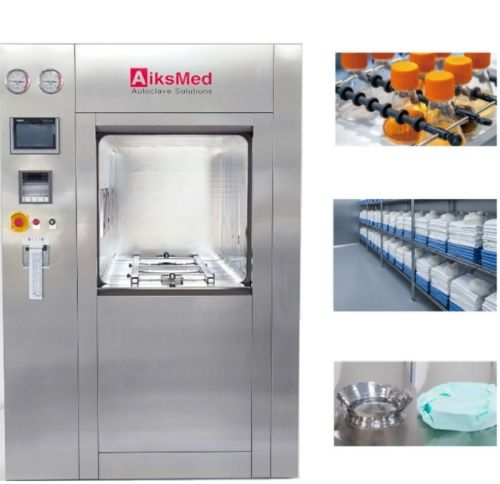

Pharmaceutical Sliding Door Vacuum Autoclave with GMP for Garments
Pharmaceutical Sliding Door Vacuum Autoclave with GMP for Garments
Pharmaceutical Sliding Door Vacuum Autoclave with GMP for Garments
Pharmaceutical Sliding Door Vacuum Autoclave with GMP for Garments
Pharmaceutical Sliding Door Vacuum Autoclave with GMP for Garments
Pharmaceutical Sliding Door Vacuum Autoclave with GMP for Garments

Pharmaceutical Sliding Door Vacuum Autoclave with GMP for Garments

Model
MDH-0.36/0.45/0.55/0.65/0.8/1.0/1.2/1.5/2.6/3.2/5.2

Item specifics

Capacity
360L, 450L, 550L, 650L, 800L,1000L,1200L,1500L
Customized
Available
Application
Garments, Tools, Rubbers, Alu Caps, Liquids
Door
Single/Double, Vertical Sliding
Control Mode
Automatic & Manual
Steam
Built-in Generator/Evaporator
Loading
Shelve/Cart

Review

Description

Specification
Technical Specifications
Features
Video
Applications
1. Pharmaceutical industry, biological safety laboratory, SPF animal laboratory, Hospital CSSD.

2. Garments, tools, apparatus, rubbers, aluminum caps, liquids, culture medium, etc.

Key Configurations

Chamber: Square and horizontal, material made of SS316L/304(Optional), Jacket made of SS304, pressure vessel, designed service life: 15 years.

Door: Hinged/Sliding doors(Optional), Single/Double doors(Optional)

Vacuum Pump: NASH

Pneumatic Valve: High temperature resistant angle seat pneumatic valve

Control System: PLC+HMI(SIEMENS)

Cycle: Textile+Tools+B-D test+Vacuum Leak Test

Temperature Sensor(PT100): Poratble and Fixed type

Pressure Transmitter: JEMS

Pressure Gauge: WIKA

Printer: Print Time, Temperature, pressure, F0, Cycle name, Batch No., etc.

Steam Generator: Optional.
Specification
Door
Model
Volume
(m³)
Chamber Size
(L*W*Hmm)
Overall Size
(L*W*Hmm)
Steam
(KG)
CW
(KG)
CA
(L)
Power
(KW)
N/W
(KG)
Vertical
Sliding Door
MDH-0.36
0.36
1000×600×600
1320×1200×1740
25
150
50
1.2
880
MDH-0.45
0.45
1000×675×675
1360×1300×1940
30
200
50
1.6
950
MDH-0.55
0.55
1200×675×675
1560×1300×1940
35
250
50
1.6
1000
MDH-0.65
0.65
1500×675×675
1860×1300×1940
40
300
60
2.4
1200
MDH-0.8
0.8
1800×675×675
2160×1300×1940
45
350
60
2.4
1400
Horizontal Sliding Door
MDH-1.0
1.0
1250×680×1180
1610×2100×2040
50
400
60
2.4
1600
MDH-1.2
1.2
1500×680×1180
1860×2100×2040
60
500
70
3.2
1700
MDH-1.5
1.5
1900×680×1180
2260×2100×2040
70
600
70
3.2
1850
MDH-2.6
2.6
1700×1000×1550
2060×2600×2100
90
1000
80
4.2
2700
MDH-3.2
3.2
2100×1000×1550
2460×2600×2100
110
1200
90
5.7
3200
MDH-5.2
5.2
3340×1000×1550
3700×2600×2100
150
1800
100
7.7
4500
Techinical Parameters
Design pressure
-0.1/0.3MPa
Working pressure
0.27MPa
Desing temperature
144℃
Working temperature
137℃
Max. vacuum
-0.096MPa
Thermal Uniformity
≤1℃
Steam pressure
0.3~0.5MPa
Water pressure
0.15~0.3MPa
Compressed air pressure
0.5~0.7MPa
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams for LAYOUT and P&ID are available upon inquiry.

 Our engineering team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 12 months after SAT, or 18 months after shipment (whichever comes first).

Extended Warranty: Optional coverage up to 24 months.

Global Support: 24/7 technical assistance and spare parts supply.

Training: On-site or remote operation/maintenance training.
Company Profile
Jiangsu AiksMed Autoclave Equipment Co., Ltd.

Jiangsu AiksMed Equipment Co., Ltd. is a leading Chinese manufacturer of steam sterilizer,autoclave equipment,laboratory device with over 20 years of expertise. Certified with ISO 9001, CE, and we export to 50+ countries, offering reliable machinery backed by R&D innovation and strict quality control.
Why Choose Us?
OEM/ODM capabilities

Competitive pricing & bulk discounts

Fast shipping & customs clearance support

Turnkey project solutions
Other Products/Laboratory Device
CO2 Incubator

Stackable Shaking Incubator

Biosafety Cabinet

Laminar Flow Cabinet

Drying Oven
FAQ
Q1: What's the lead time for orders?

A: Standard models ship in 45–60 days; customized units require 60–90 days.

Q2: Do you provide after-sales service overseas?

A: Yes, we have partnered service centers in key regions.

Q3: Can I request a customized size?

A: Absolutely! We offer tailored chamber volume with drawing.

Q4: What technical documents do you provide?

A: Complete documentation. (Layout,P&ID,DQ/IQ/OQ/PQ,FAT,SAT,Operation Manual,ect).

Q5: What document do you provide for export?

A: Full export package(Commercial Invoice,Packing List.Bill of Lading,COC,etc.)
Project Showcase
Exhibition
steam sterilizer
Chamber & Jacket
Muti-channel steam injection, Complete drainage.
steam sterilizer door
Door
Sliding & Hinged door for option.
steam sterilizer welding
Welding
Robot welding.
steam sterilizer piping
Piping system
Vacuum pump, Pneumatic valve, cooling drain.

steam sterilizer control system
Control system
Audit trail & FDA CFR Part ii: Electronic signature.
steam sterilizer doc
Document
DQ/IQ/OQ/PQ/FAT/SAT
