- Loading Capacity
- 1000L, 1200L, 1500L
- Garments, Tools, Rubber Stoppers, Alu Caps
- Single/Double, Horizontal Sliding
- Control Mode
- Automatic & Manual
- Steam Generator
- Loading System

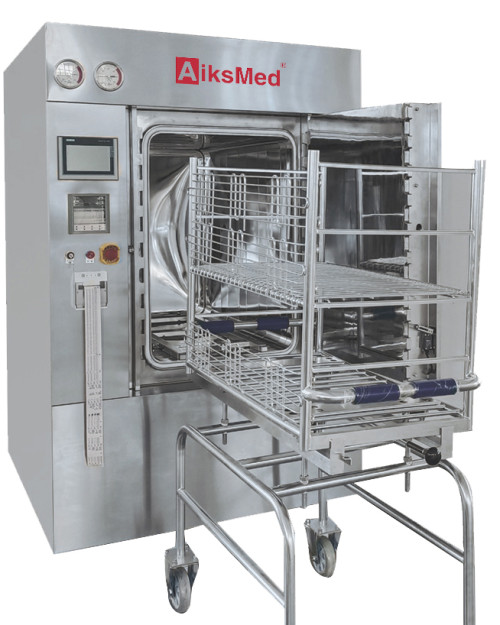

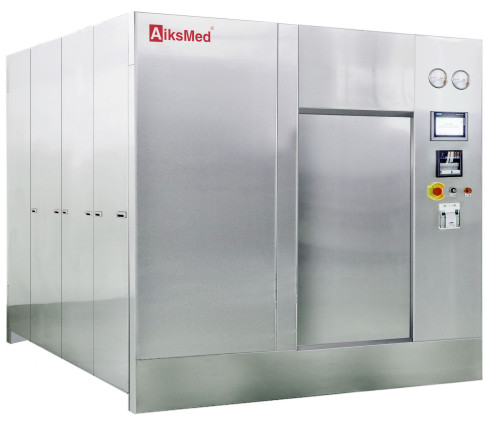

PULSE VACUUM STEAM STERILIZER
MDD Series Pulse Vacuum Steam Sterilizers are used for garments, tools sterilization in pharma industry.
AIKSMED provides diverse chamber volumes for option,
including 1000L, 1200L, 1500L,
there are single door, pass-through double doors to choose,
To adapt for space requirement, MDD Series have very compact structure,
meanwhile combined with various features for strict requirements,
such as multiple sterilization process, easy maintenance, stable performance, and highly efficient process time.
Additional accessories can be fitted to achieve higher level requests.
eg. for biological safety laboratories, to separate sterile and non-sterile areas, and protect external environment,
pass-through safety interlock, air extract filtration and sterization in place(SIP) ,
drainage cooling without pressure can be realized via MDD Series.
Sterilization of garments, tools, rubber stoppers, aluminum caps, and etc.
✔ Main components of sterilizer: sterilization chamber, sealing door, pipeline system, control system, loading&transfer system.
✔ Design pressure up to 0.3MPa/3bar.
✔ Autoclave vessel made of AISI316L/304.
✔ Housing, support frame, chamber made of corrosion-resistant stainless steel material.
✔ Safety valves for chamber, with over-pressure protection.
✔ Door interlock security system.
✔ Door lock with durable, heat and pressure-resistant seal/gasket.
✔ Touch screen control.
✔ Access code to prevent uncontrolled software changes.
✔ Three-level authority management.
✔Up to 100 sterilization cycles.
✔ Portable PT-100 temperature sensor (class A).
✔ Display of sterilization temperature, time, F0 value in real time.
✔ Validation port to test thermal distribution.
✔ Network and USB ports for data transfer.
✔ Emergency stop button to stop autoclave cycles.
✔ Alarm information in form of code and full message.
■ Advanced structure of chamber combined with jacket for faster heating-up and cooling.
Air inlet & Extract Filtration
Drainage Cooling & Security System
