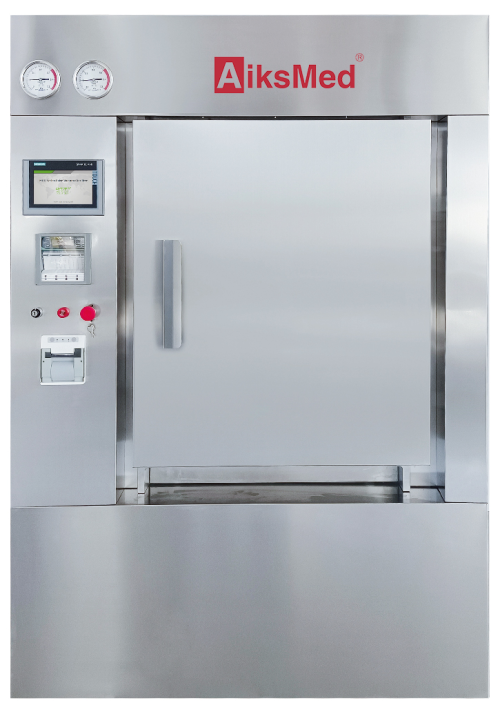

Pharma Vertical Sliding Door Rectangular Autoclave Steam Sterilizer
Pharma Vertical Sliding Door Rectangular Autoclave Steam Sterilizer
Pharma Vertical Sliding Door Rectangular Autoclave Steam Sterilizer
Pharma Vertical Sliding Door Rectangular Autoclave Steam Sterilizer
Pharma Vertical Sliding Door Rectangular Autoclave Steam Sterilizer
Pharma Vertical Sliding Door Rectangular Autoclave Steam Sterilizer

Pharma Vertical Sliding Door Rectangular Autoclave Steam Sterilizer

Model
MDD-0.2/0.25/0.28/0.36/0.4/0.5/0.6/0.8/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0

Item specifics

Loading Capacity
200L,250L,280L,360L,600L, 800L, 1000L,...4000L
Customized
Available
Application
Garments, Tools, Rubber Stoppers, Alu Caps
Door
Pass-through Double Doors
Control Mode
Automatic & Manual
Steam Generator
Built-in/External
Loading System
Shelve/Cart

Review

Description

Application
Features
Technology
Video
Applications
1. Pharmaceutical industry, biological safety laboratory, SPF animal laboratory, Hospital CSSD.

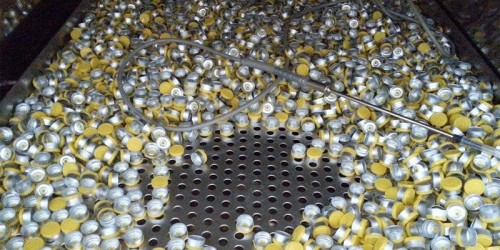

2. Garments, tools, apparatus, rubbers, aluminum caps, liquids, culture medium, etc.

Key Configurations

Chamber: Square and horizontal, material made of SS316L/304(Optional), Jacket made of SS304, pressure vessel, designed service life: 15 years.

Door: Hinged/Sliding doors(Optional), Single/Double doors(Optional)

Vacuum Pump: NASH

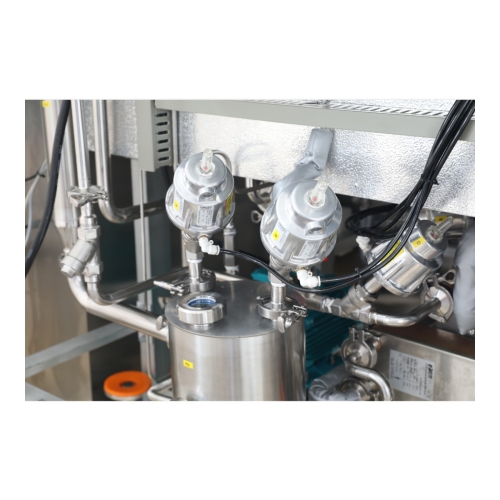

Pneumatic Valve: High temperature resistant angle seat pneumatic valve

Control System: PLC+HMI(SIEMENS)

Cycle: Textile+Tools+B-D test+Vacuum Leak Test

Temperature Sensor(PT100): Poratble and Fixed type

Pressure Transmitter: JEMS

Pressure Gauge: WIKA

Printer: Print Time, Temperature, pressure, F0, Cycle name, Batch No., etc.

Steam Generator: Optional.


★★★Features:
pulse vacuum sterilizer chamber
✔  Main components of sterilizer: sterilization chamber, sealing door, pipeline system, control system, loading&transfer system.

✔ Design pressure up to 0.3MPa/3bar.

✔ Autoclave vessel made of AISI316L/304.

✔ Housing, support frame, chamber made of corrosion-resistant stainless steel material.

✔ Safety valves for chamber, with over-pressure protection.

✔ Door interlock security system.

✔ Door lock with durable, heat and pressure-resistant seal/gasket.

✔ Touch screen control.

✔  Access code to prevent uncontrolled software changes.

✔  Three-level authority management.

✔Up to 100 sterilization cycles.

✔ Portable PT-100 temperature sensor (class A).

✔ Display of sterilization temperature, time, F0 value in real time.

✔ Validation port to test thermal distribution.

✔ Network and USB ports for data transfer.

✔ Emergency stop button to stop autoclave cycles.

✔ Alarm information in form of code and full message.

autoclave sterilization pressure vessel
Design
■ Advanced structure of chamber combined with jacket for faster heating-up and cooling.


autoclave sterilization cycle
Operation
Pulse Vacuum Steam Sterilizer Air Filter
Air inlet & Extract Filtration
Pulse Vacuum Steam Sterilizer
Drainage Cooling & Security System
Pulse Vacuum Steam Sterilizer 1.2M3                                   Fertilizer Steam Sterilizer 4M3 SAT
